» » Recognized by Autodesk© as a Pioneer Third-Party Application Developer « «

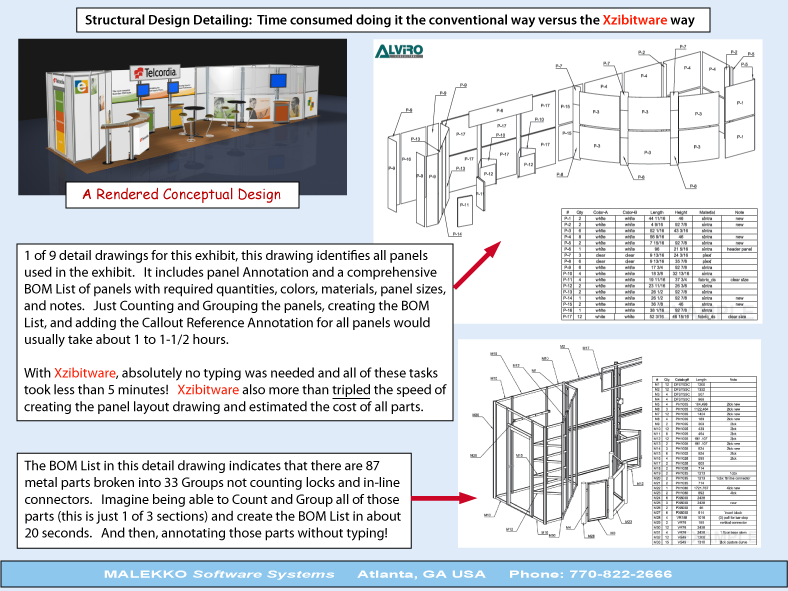

for exhibit design, detailing, and cost estimating
  • Runs directly inside all AutoCAD© 200x versions
  • Equipped for "Real" needs of designers/detailers
  • Detailed Estimates of materials, labor times, costs
  • Graphics Requirements, sizes, materials, costs
  • Material Sizing in either inches or millimeters
  • 'Ready-To-Use' Symbol Libraries with 100's of symbols and information records for components from companies such as Octanorm©, AGAM Group and others
  • Report data for both single and multiple exhibits
  • Report Shortages for both single and multiple exhibits
  • Attach Custom Fabrication Labor steps to any component
  • Fast Custom BOM Lists created inside exhibit drawings
  • Custom Management of exhibit component libraries
  • Export Data to customizable pricing spreadsheets
  • Works with components from multiple manufacturers
  • Insert and Library-Manage any AutoCAD© 200x symbol
  • Create and Insert exhibit component Assemblies
  • Add Subcomponents to any Metal item
  • Includes Record Browse-Edit Windows for materials information tables, fabrication labor, exhibit information
  • For Material Categories of metal, panels, accessories, and other item types
  • 22 Reports (see "Products" page) that include exhibit information, materials shortages, materials and labor time requirements with 'Pick' / 'Pull' lists, custom fabrication labor, inventories, 23 line item materials, labor, weight summary report with breakdown into separate sold and rented items pricing categories
  • Capture additional Labor and extra Cost situations
  • "Block Builder" for easy exhibit component creation
  • "Smart Blocks" for fast Profile-to-Part creation
  • Numerous "Safety-Nets" to block user errors
  • Convert and continue to use existing CAD symbols
